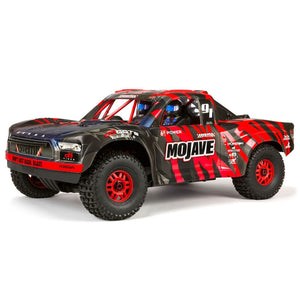

ARRMA Mojave V2 1/7 Desert Truck Brushless 6S 4WD RTR

REF: ARA7604V2T1

DESCRIÇÃO DO PRODUTO

Product Details

The 1/7 scale ARRMA® MOJAVE™ 6S BLX 4WD Desert Truck RTR is ready for big bashing action on any terrain. Its Spektrum™ SLT3™ 3-channel radio, dual protocol receiver, Smart ESC and more combine to reach new levels of speed, toughness and versatility.

Key Features

Updated with Spektrum™ components and Smart compatible
60+ MPH (97km/h) speeds achievable in optimum conditions using a 6S LiPo battery and the optional pinion gear included
EXB compatible front brace
Large volume waterproof receiver box
Ready-to-run - just install a charged 4 cell or 6 cell LiPo battery of your choice

In The Box

(1) ARRMA® MOJAVE™ 6S BLX 1/7 Desert Truck RTR
(1) Spektrum™ Firma™ 150A Smart 4S/6S ESC (installed)
(1) Spektrum ™ Firma ™ 4074 2050Kv Brushless Motor with ARRMA® Heatsink (installed)
(1) Spektrum ™ S652 Metal-Geared Digital Servo (installed)
(1) Spektrum ™ SR315 3-Channel Dual Protocol Receiver (installed)
(1) Spektrum ™ SLT3™ 2.4GHz 3-Channel Radio
(1) Product Manual

Needed to Complete

(2) 2S or (2) 3S LiPo Batteries with EC5™ or IC5™ connector
(1) Compatible Battery Charger
(4) AA batteries for Transmitter

Introduction

Experience the speed and durability of ARRMA® bashing in a big way with the 1/7 scale brushless MOJAVE™ 6S BLX 4WD Desert Truck. Designed Fast and Designed Tough, it's ready for extreme performance right out of the box, whether you're thrashing through coastal sand dunes or blasting across concrete sidewalks

Features

Ready-to-run
Spektrum™ SLT3™ 2.4GHz 3-Channel Radio
Spektrum™ SR315 Dual Protocol 3-Channel Receiver
Spektrum™ S652 Digital Servo
Spektrum™ Firma™ 150A Smart ESC
Spektrum™ Firma™ 4074 2050Kv Brushless Motor
EXB compatible front brace
Stronger rear brace mount
Large volume waterproof* receiver box
+1mm wheel hexes
Stronger body mounts
Anodized aluminum chassis
Strong composite chassis side pods
Center brace for maximum durability
Center roll hoop interfaces with body roll cage for enhanced body durability
Nerf bars for body and side impact support
Realistic front and rear bumper protection
Independent suspension for superior handling
Flexible front bumper valance
Heavy-duty suspension arms with red-anodized aluminum strengthening cap

Oil-filled adjustable shocks
Black-anodized aluminum front and rear shock towers
Durable steel driveshafts throughout
Heavy-duty drivetrain
All-metal diff outdrives and gearbox internals
Never-loose red aluminum servo saver
Never-pop ball ends
5-Bolt center diff removal
Easy-access sliding motor mount for quick motor removal
Super-durable wheel hubs for increased strength
Color-coordinated multi split-spoke wheels
Multi-terrain dBoots® FORTRESS™ tires
Multi-finish matte and gloss body
Realistic cockpit detail
Ultra-detailed decals
Color coordinated protective roll cage and roof rails
IC5® connectors (EC5™ compatible)
2-year limited warranty (see manual for details)

*For details on waterproof standards, please refer to the product instruction manual

Overview

ARRMA® engineers have updated the MOJAVE™ 6S BLX 4WD Desert Truck with a brushless power system featuring the Spektrum™ Firma™ 150A Smart ESC and Firma™ 2050Kv brushless motor. The combination lets you cut loose with incredible torque, acceleration and speed, while the heavy-duty aluminum and steel chassis and transmission components take it all in its stride. For improved steering, ARRMA® also includes a new, steel gear Spektrum™ S652 Digital Servo — which is 32% stronger and 5% faster than the previous version's ADS-15M servo.

The ready-to-run package now also includes a 3-channel Spektrum™ SLT3™ radio and Spektrum™ SR315 dual protocol receiver. Perfect for long hours of fatigue-free bashing, the transmitter's ergonomic design features a foam steering wheel for precise fingertip control and an improved hand grip and trigger feel. If you're a new driver, you'll be able to set throttle limits at 50% or 75% until you're ready to use the full speed potential. The SLT3™ is compatible with Tactic® SLT™ receivers to run other RTR vehicles you may own, and includes a third channel to control optional features such as lights and winches on models that have them.

Because the SR315 receiver can use SLT™ and DSMR® protocols, you can easily upgrade to a Spektrum™ DSMR® transmitter later — then, download the free Spektrum™ Dashboard™ app for your mobile device and take full advantage of the Smart telemetry capabilities already present in the Firma™ electronics. You'll be able to receive real-time updates of ESC temperature, receiver (BEC) voltage, drive pack voltage and motor RPM.

With the rugged construction of the MOJAVE™ 6S BLX 4WD Desert Truck, you'll have the strength needed to survive anything — bashing through dirt, asphalt and grass, in sun, rain or snow. The tough-as-nails anodized aluminum chassis is reinforced with front, rear and center braces for maximum durability. Bumpers and nerf bars supply impact protection on all sides. Thanks to independent suspension with bump-soaking oil-filled shocks, the Desert Truck handles equally well over wicked and well-travelled tracks.

The drivetrain is a masterpiece of heavy-duty design. Featuring steel driveshafts, metal gears, and all-metal diff outdrives, it's ready to take full advantage of the brushless power system's potential. As it comes out of the box, the MOJAVE™ 6S BLX Desert Truck is incredibly fast. Use a 6S LiPo with the optional pinion gear upgrade (gear is included), and the resulting 60+ MPH speed potential is enough to crush any competitor. Keeping your truck in top form is easy. A sliding mount gives you access to the motor in seconds. You can remove the center diff for maintenance by taking out just five bolts.

Multi-terrain dBoots® FORTRESS™ tires on multi split-spoke wheels give your MOJAVE™ 6S BLX Desert Truck the grip to get up, over, or through anything in your way. And it doesn't just perform like a winner. It looks like one, too, with a painted and decaled desert truck body, color-coordinated roll cage and roof rails, and even a detailed cockpit.

TWO BROTHERS, TWO COLORS

Each with color coordinated wheels, roll cage, and roof rails

FROM STRENGTH TO STRENGTH

Red anodized aluminum strengthening cap with pivot ball geometry

LONG RANGE

Independent suspension for superior handling

SIDE NERF BARS

Attached to body for side impact support

SAFE-D FIRST

Input gears are keyed to the drive cups composite sleeves to fortify retention of the drive cup ser screw.

FRONT PIVOT BALL SUSPENSION

For precise handling at top speeds

QUICK MAINTENANCE

5 bolt center diff removal for easy access

SPEKTRUM® SMART TECHNOLOGY INCLUDED

FIRMA™ 150A SMART Brushless ESC and FIRMA™ 4074 2050Kv Brushless Motor

RUBBER SHIELDED BEARINGS

Longer life, less maintenance

GO LARGE

Large volume waterproof receiver box

OPTIONAL SPEED PINION INCLUDED

Red anodized motor mount and Mod 1 spur and pinion gears to handle optimum performance.

SPEKTRUM® SPMS652 DIGITAL SERVO

All Steel Gears
Waterproof*
19.08kg-cm/265oz-in Torque @7.4V
32% More Torque & 5% Faster than ADS-15M Servo

*For details on waterproof standards please refer to the product instruction manual

SPEKTRUM® SLT3® RADIO

Superb SLT response rate
50% and 75% throttle limited switch - great for beginners
Steering & throttle rate & trim adjustments with throttle and steering reversing
Foam steering wheel grip
Compatible with Tactic Receivers

SPEKTRUM® SR315 RECEIVER

Dual Protocol - Compatible with SLT and DSMR® 2.4GHz protocol transmitters
Fast reponse rate and outstanding range
No tool binding and protocol switching
SMART telemetry compatible (in DMSR mode and with SPEKTRUM dashboard app)
3-Channels

FIRMA™ 150A SMART Brushless ESC

Waterproof* and dustproof design
150A, 6S LiPo ready (3S, 4S & 6S LiPo compatible)
Spektrum® SMART Technology
Fitted with reliable IC5® connectors (EC5™ compatible)
Integrated fan for reduced heat during extreme running
High quality 10awg wires
Low voltage cut off and thermal overload protection
User programmable punch, brake, BEC, reverse speed and motor timing settings

*For details on waterproof standards, please refer to the product instruction manual

FIRMA™ 4074 2050Kv Brushless Motor

2050Kv 4074 size 6S brushless motor
Beautifully etched aluminum can
4-pole construction for smooth and consistent power
4mm gold bullet connectors for reliable and efficient connection
Black anodized aluminum motor can for increased heat dissipation
Super strong 5mm shaft
Groove at the end of the motor shaft allows the installation of a pinion retaining E-Clip

Product Specifications

Manufacturer #	ARAD32GL
Approximate Assembly Time	No assembly required
Ball Bearings	Full set
Battery	Sold Separately
Body	Painted, decaled and trimmed
Brakes	Integral with ESC
Charger	Sold Separately
Chassis	0.12" (3mm) 6061-T6 aluminum
Completion Level	Ready-To-Run
Differential	3-gear
Drivetrain	4WD
Drive Type	Forward/Brake/Reverse
Final Drive Ratio	13.44
Front Shock Spring Rate	3.2 f-lb/in
Front Track	13.98" (355mm)
Power Type	Electric
Gear Pitch	1.0MOD
Internal Gear Ratio	4.3
Motor Size	FIRMA™ 4074 2050Kv Brushless Motor
Motor Type	Brushless - Inrunner
Pinion	16T
Product Height	10.59" (269 mm)
Product Length	28.15" (715 mm)
Product Weight	11.88lbs (35mm)
Product Width	13.98" (355 mm)
Radio	Included
Rear Shock Spring Rate	7.7 f-lb/in
Rear Track	13.98" (355mm)
Receiver	Included
Scale	1/7
Servos	Included
Shock Type	Aluminum body, oil-filled adjustable
Speed	60+
Speed Control	Included
Spur Gear	50T
Suspension	Independent
Technology	Smart
Tire Tread	dBoots FORTRESS
Tire Type	Multi-surface
Vehicle Type	Desert Truck
Water-Resistant	Yes
Wheel Type	1/7 SC, 17mm Hex, Multi Split Spoke
Wheel Width	1.66" (42mm)
